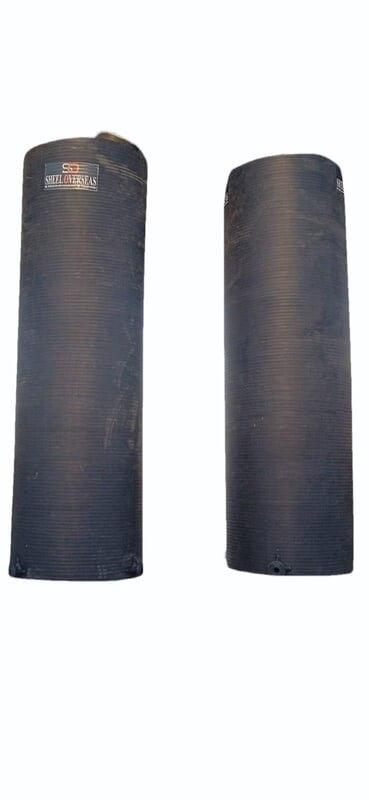

20,000 Lt. HDPE Spiral Chemical Tank

Name: 20,000 Lt. HDPE Spiral Chemical Tank
SKU: 20000 HSCT
Price: 279999.0 INR
Availability: InStock

Write a review

Non-returnable

Sheel Overseas 20,000 Lt. Chemical Tank

₹279,999.00 ₹299,999.00

Wt (Kgs) +/- 5%

kgs

Choose Quantity

Add to Cart. . .

Product Details

Specifications

Unique Features:

One-piece moulded without seams or joints and hence leak-proof.
Hygienic.
Maintenance-free.
Light weight and hence easy to carry and install.
Removable lids.
Ribbed design for better strength.
Versatile.
Aesthetically appealing.
Excellent impact resistance
Rust proof.
Durable.
Robust construction ensures long life expectancy.
Tested and approved by leading laboratories, industries and institutions.

Installation Instructions:

Provide full bottom support to the tank.
Install the tank on rigid, plain and smooth surface.
Keep the lid closed all the time.
Support all the connections to avoid pressure on the area of fittings.
Check all the connections before using the tank.
Fill up the tank part by part.
Stop use of the tank, if leakage is noticed.
Do Not install the tank near areas of vibration.
Do Not use the tank at pressure or Vaccum.
Do Not make direct connections of pump to the tank, provide flexible pipe in-beween.
Do Not directly interconnect two Tanks, inter connect through common manifold with flexible pipe in-between.

Special Notes:

All white tanks and white industrial products are specially for indoor use only, not outdoor.
If tank cracks from inlet or outlet connection, there is no manufacturing fault.
In Chemical storage tanks,maintain service temprature between 10°C to 60°C.
Metal structure support essential for all type of Chemical Storage – Industrial Containers.

Chemical Compatibility:

Ammonia, Acetic acid, Hydrofluosilicic acid, Hydrochloric acid, Sulphuric acid, Sodium hypochlorite, Caustic liquor, Ferric sulphate, Ferric chloride, Polyaluminium chloride, Orthophosphoric acid, Phosphoric acid, Lime slurry, Leachate and all other analogous chemicals.

Dimensions (mm):

Diameter:
2900
Height:
3150
Manhole:
490

Volume:

Volumetric Capacity (Litres):
20000

Manufacturing Process:

Manufacturing Process:
Roto Moulding with/without Fabricated Sleeve

Raw Material:

Raw Material:
100% Virgin Grade LLDPE with/without HDPE Sleeves
